Melting point is the number you set your torch technique against. Sterling Solder — a lead-free tin-copper alloy — melts and flows in a working band centered on 410°F (210°C). That window sits well below brazing temperatures that anneal thin-wall copper and damage nearby valves, yet hot enough for reliable capillary wetting on potable and mechanical lines. Understanding this range helps plumbers, HVAC fitters, and artisans heat the fitting — not flood the joint — and let alloy pull into the cup.
Cross-reference alloy specifications for tensile data, paste formats for vertical work, and lead-free compliance when sweating potable copper.
The 410°F window
Solder alloys pass through a plastic range between solidus and liquidus temperatures rather than melting instantly. Sterling's tin-copper formulation targets a tight band around 410°F so technicians get quick flow without prolonged heat on the joint. Prolonged heat drives flux burnout, tube discoloration, and warped fittings — especially on thin refrigeration and fixture supply lines.
In field terms: when flux sizzles clear and copper shows a dull heat tint near the cup, you are approaching the working window. Touch solder to the joint mouth; if it melts on contact and wicks inward, the assembly is in range. If wire balls up on the tube without flowing, the fitting is still too cool or the surface is contaminated.
Solidus and liquidus
Metallurgists distinguish solidus (where alloy first softens) from liquidus (where it is fully molten). Sterling's composition keeps that spread narrow — a benefit for capillary joints because filler transitions to full flow quickly once the fitting absorbs enough heat. Wide-range solders linger semi-solid and trap voids if you move the torch too soon.
You do not need a pyrometer on every joint. Experienced techs read flux behavior and solder wetting. Trainees should practice on scrap fittings with the same torch tip they carry on service trucks — MAP-pro, propane, and air-acetylene tips each deliver different heat density at the cup.
Versus brazing heat
Brazing copper typically requires filler flow above 1,100°F with BCuP or similar alloys. That heat anneals thin tube, remelts nearby soldered joints if you are careless, and damages rubber grommets on penetrations. Sterling's 410°F range lets you sweat connections close to valves and plastic stub-outs when code and engineering allow — still follow company safety rules on open flame near combustibles.
Choose solder when design pressure and pipe size permit low-temperature joins. Step up to brazing when the spec mandates it. This page guides the solder side of that decision for Sterling crews.
Torch selection tips
MAP-pro and modern propane tips reach the Sterling window fast on 1/2-inch and 3/4-inch fittings. Use a neutral flame — excess fuel gas carbonizes flux. For tight spaces, smaller tips reduce the risk of overheating the tube body while the cup stays cold. Rotate heat around the fitting shoulder so the entire land reaches activation before you feed wire.
Air-acetylene pencils offer fine control on small ports and artisan work. Keep flame motion steady; pulsing too aggressively cycles copper through temperatures that oxidize faster than flux can clean. If insulation begins to char on nearby lines, pull heat back and use a heat sink clip on the run.
Flux activation timing
Flux matched to Sterling is formulated for the 410°F melt point. It should bubble, then go quiet and transparent as oxides lift — that visual cue precedes solder flow by seconds. Applying wire before flux activates produces grainy cold joints. Waiting too long after flux clears burns the chemistry and reverses wetting. The window is narrow enough that timing discipline matters on every cup.
Paste flux on vertical or overhead work reduces drip while preserving similar activation timing. Brush a thin coat; thick paste insulates metal and delays heat transfer. Compare liquid and paste workflows on our paste page.
Capillary heating method

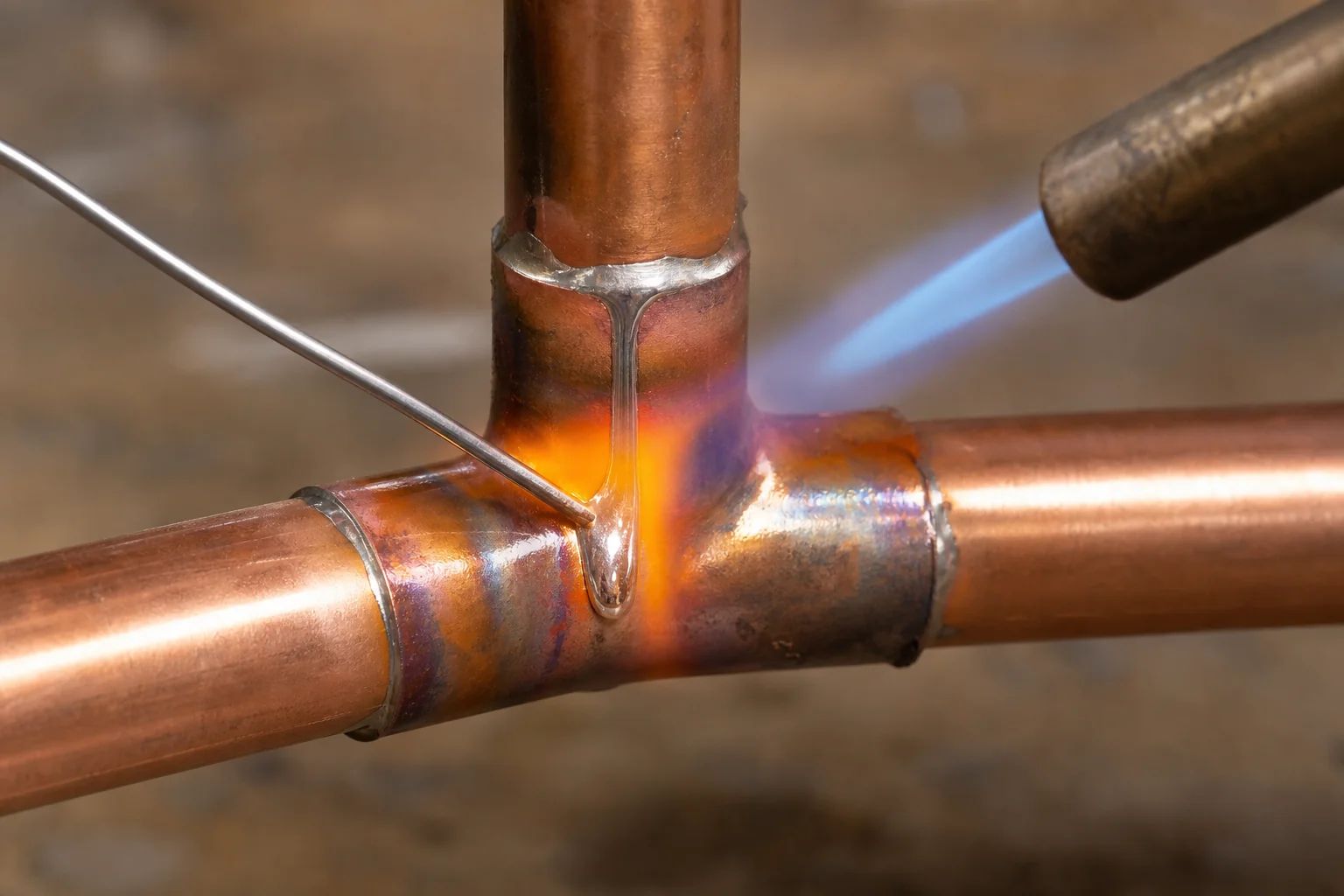

The capillary action heating technique means you conduct heat into the fitting mass so the internal cup melts solder drawn from the outside. Do not melt a large ball on the tube and hope it falls into the gap. Hold flame on the fitting, remove it, touch wire to the joint interface, and let molten tin-copper get pulled into the capillary path by surface tension and wetting forces.
On horizontal runs, apply solder at the top of the joint mouth so flow traces around the circumference. On vertical rises, start at the bottom and work up to avoid trapping flux inclusions. A full fillet ring at the exit means you likely captured the entire land depth.
Copper tube considerations
Thin-wall ACR tube heats faster than thick Type L plumbing pipe. Adjust dwell time so you reach 410°F at the cup without glowing the tube. Overheated copper turns dark and grainy; solder may flow but base metal strength drops. If tube discolors before solder wicks, use a larger tip at lower proximity or pre-warm the run gradually.
Cold outdoor installs in winter pull heat from joints faster. Shelter the work area, preheat the fitting longer, and keep wire warm so feed rate stays consistent. Indoor mechanical rooms with airflow over open joists mimic winter conditions — draft shields help.
Plumbing rough-in notes
Plumbers running NSF-listed Sterling on potable lines appreciate lower heat compared to brazing when working close to plastic stub-outs and valve packing. Maintain the 410°F discipline even when production pressure pushes you to overheat for speed. Cold joints discovered at trim-out cost far more than an extra thirty seconds per cup during rough-in.
After cooldown, flush lines to remove flux per local code. Melting point knowledge does not replace inspection — visual fillet checks and hydrostatic holds confirm that alloy actually flowed while metal was in range.
Avoiding common mistakes
Feeding too much wire floods the cup and drops temperature below flow point. Moving flame onto wire instead of fitting creates external blobs. Reheating completed joints to "shine them up" exceeds 410°F locally and can remelt only the surface while leaving voids inside. If a joint fails inspection, cut it out rather than layering heat.
Silver-bearing Sterling on artisan work follows the same heat rules — silver shifts wetting slightly but not the fundamental fitting-first method.
Quick reference
Alloy: Sterling lead-free tin-copper solid wire. Flow range: 410°F / 210°C. Flux: Matched liquid or paste chemistry. Method: Heat fitting, capillary feed, natural cool. Tensile: 7130 psi on qualified joints per specifications.
Tape this workflow to your torch cart until visual cues become automatic: flux clears, wire wicks, fillet rings, flame off. The alloy does the chemistry; your heat control delivers the temperature.
